EXTENDER PORTU HDMI Z ZASIĘGIEM 300m NA
DWÓCH KABLACH ŚWIATŁOWODOWYCH
|
 |
FUNKCJONALNOŚĆ

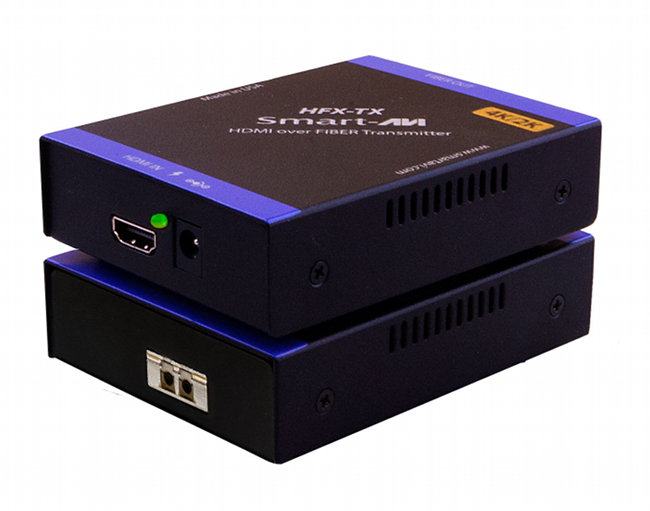

For reliable, uninterrupted and long-distance HDMI extension, the
HFX-Pro provides the best solution with its fiber opticextension
capabilities. Users can bridge large gaps that they ordinarily could

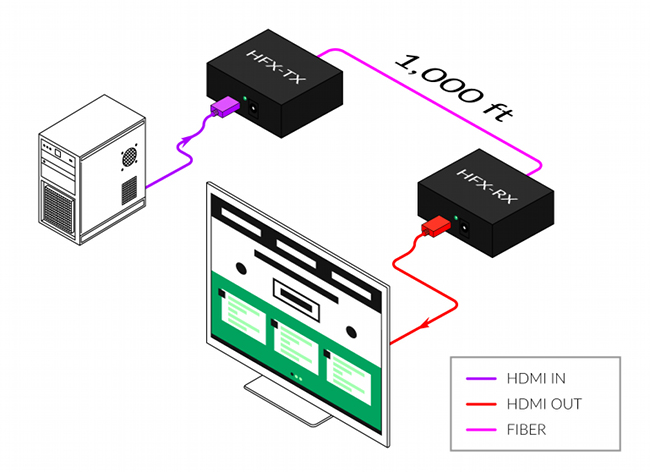

not with this compact device. The HFX includes the
transmitter and receiver, for complete point-to-point signal extension,
with no need for any other hardware or software.
The HFX delivers uncompressed HDMI signals up to 1,000 feet (300
meters). Supported resolutions go up to 4K Ultra HD
(@30Hz), and 3D HD video is also supported. As with all HDMI
connections, high-quality digital audio is also transmitted via the
extender.
Fiber optic signal extension is the newest and best way to break the
distance barriers that plague traditional HDMI connections.
By providing additional distance from the input device to the screen,
users can handle their HD viewing needs in a number of
important environments. This is useful for separating equipment and
computers from the place where users are viewing content,
which includes environments like medical offices, recording studios,
financial centers and much more. Furthermore, fiber optic
cables are resistant to electromagnetic and radio frequency
interference, creating a stable and reliable connection.
-
LC-Type Fiber connection
- Supports HDMI 1.4a
- HDCP Compliant
- Extends HDMI signals up to 1,000
feet (300 m) at 10.3Gbps with OM3 multimode fiber optic
cabling
- Supports resolutions up to 4K
Ultra HD (@30Hz)
- Hot Pluggable
- EMI/RFI Resistant
|
 |
|
VIDEO
|
|
Format
|
HDMI 1.4 and HDCP
compliant
|
|
HDTV Resolutions
|
480p, 720p, 1080i,
1080p/60Hz/48bit, 4Kx2K/30Hz
|
|
TV Resolution
|
480i
|
|
Refresh Rate
|
Up to 130Hz
|
|
Wavelength
|
850 nm
|
|
Bit Error Rate
Performance
|
1.00E-12
|
|
Input Interface (TX)
|
HDMI Type A 19-pin
Female TMDS
|
|
Output Interface (RX)
|
HDMI Type A 19-pin
Female TMDS
|
|
Input Cable Length (TX)
|
Up to 40 ft. (12 m)
|
|
Output Cable Length
(RX)
|
Up to 40 ft. (12 m)
|
|
Format
|
Dolby TrueHD, DTS-HD MA
|
|
Input Interface
|
HDMI (Integrated)
|
|
Output Interface
|
HDMI (Integrated)
|
|
Laser Output Power
|
Class 1; EN 60825-1
2007; EN 60825-2 A2 2010
|
|
SYSTEM
|
|
Output Interface
|
Fiber Optic
|
|
Output Cable
|
Multimode
|
|
Maximum Length
|
1,000 feet (300 meters)
|
|
OTHER
|
|
Power
|
External 230
VAC/5VDC2A @10W
|
|
Dimensions
|
5"W x 1.125"H x
4.125"D
|
|
Weight
|
1 lbs. (0,5 kg)
|
|
Approvals
|
UL, CE, ROHS Compliant
|
|
Operating Temp
|
32-131°F (0-55 °C)
|
|
Storage Temp
|
-4-185 °F (-20-85 °C)
|
|
Humidity
|
Up to 95%
|
|
 |
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
|
HDMI Point to Point Fiber Extender.
Includes:[HFX-TX, HFX-RX, 2 x (PS5VD2A-WLLMNT)]
|
HFX-S
|
PDF
manual
Quick Start Guide
|
Karta
katalogowa
|
|
|
|
|
|
