  • EXTENDER PORTU HDMI Z PRZESYŁANIEM SYGNAŁU SIECIĄ TCP/IP, ZASIĘG 150m


  • FUNKCJONALNOŚĆ

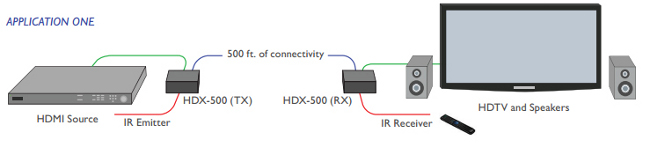

    The HLX-500 HDMI Extender gives users the freedom to extend HDMI signals via LAN, using inexpensive Cat5e/6 cables thatmany modern communications already rely on. This chainable extender can be used to generate thousands of feet of HDMI signal extension, breaking distance barriers. Users can set up their own extension cabling or utilize the pre-existing LAN infrastructure they have access to. Each unit extends signals up to 500 feet (150m). With no software or driver required, users can easily extend HDMI signals such as HDTV, Blu-Ray, video game consoles and more. HLX-500 supports 1080p HD video up to 1920x1080 resolution at 60Hz and is Infrared Remote enabled.

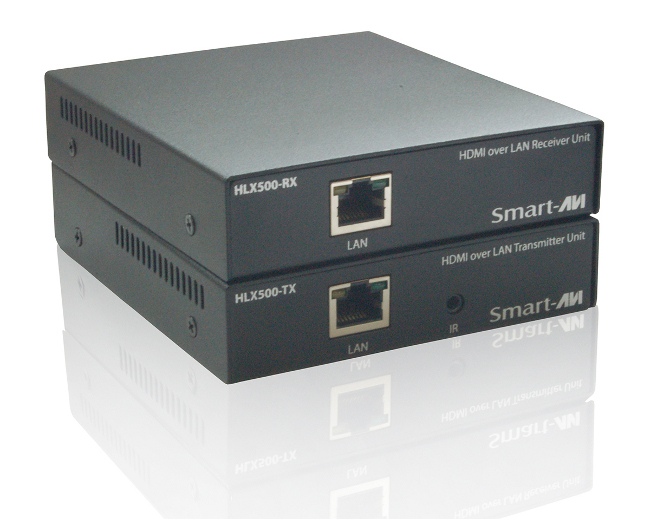

    The HLX-500 is a compact unit that is easily integrated into a digital display network at retail stores, restaurants, office spaces and many other venues. The transmitter and receiver units are small yet sturdy, which makes inclusion into any audio/video infrastructure quick and efficient.

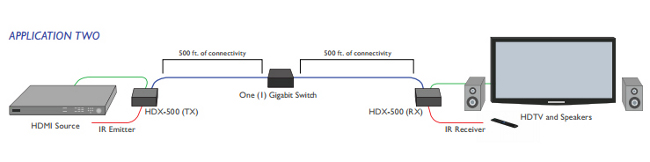

    The HLX-500 compresses data to utilize Cat5e/6 cables, but users will see no degradation of signal when using one gigabit Internet connections and up. For users utilizing pre-existing LAN connections, implementing a one gigabit switch allows for full resolution extension. Users with smaller bandwidth will experience compressed signals, if they so choose.
    • Extends HDMI signal up to 500 feet (150 m) via LAN (Cat5e/6 cables)
    • Chainable for thousands of feet (1000 m) of extension
    • Supports high resolution 1080p HD video, 1920x1080 at 60Hz
    • Supports stereo audio
    • IR (Infrared) remote enabled
    • Bracket mountable
    • No software or driver required
    • Plug-and-Play ready




    VIDEO

    Format

    HDMI 1.3 and HDCP compliant

    HDTV Resolutions

    480p, 720p, 1080i, 1080p/60Hz/48bit

    TV Resolution

    480i

    Input Interface (TX)

    HDMI Type A 19-pin Female TMDS

    Output Interface (RX)

    HDMI Type A 19-pin Female TMDS

    Input Cable Length (TX)

    Up to 40 ft. (6 m)

    Output Cable Length (RX)

    Up to 40 ft. (6 m)

    AUDIO

    Format

    Dolby TrueHD, DTS-HD MA

    Input Interface

    HDMI (Integrated)

    Output Interface

    HDMI (Integrated)

    IR

    Signal Type

    38 KHz

    Interface

    3.5 mm Jack Socket (Female)

    RS-232

    Baud Rate

    Up to 19,200 bps

    Input Interface (TX)

    DB-9 (Serial) Female

    Output Interface (RX)

    DB-9 (Serial) Male

    SYSTEM

    Interface

    RJ-45

    Cable Requirements

    CAT5/5e/6

    Maximum Length

    500 ft. (150 m)

    OTHER

    Power

    External 230 VAC/5VDC2A @10W

    Dimensions

    4”W x 1”H x 4.357”D

    Weight

    0.6 lbs. (0,3 kg)

    Approvals

    UL, CE, ROHS Compliant

    Operating Temp.

    32-131°F (0-55 °C)

    Storage Temp.

    -4-185 °F (-20-85 °C)

    Humidity

    Up to 95%





    Zestawienie oferowanych urządzeń

    Nazwa

    Nr katalogowy

    Instrukcja obsługi

    Karta katalogowa

    HDMI, IR, RS-232 Point to Point CAT5 Extender.
    Includes: [HLX-500-TX, HLX-500-RX, 2 x (PS5VD2A)]

    HLX-500-S

    PDF manual

    Karta katalogowa
