EXTENDER KVM Z PORTAMI HDMI 4K I USB,
ZASIĘG 1400m NA ŚWIATŁOWODZIE
|
 |
FUNKCJONALNOŚĆ

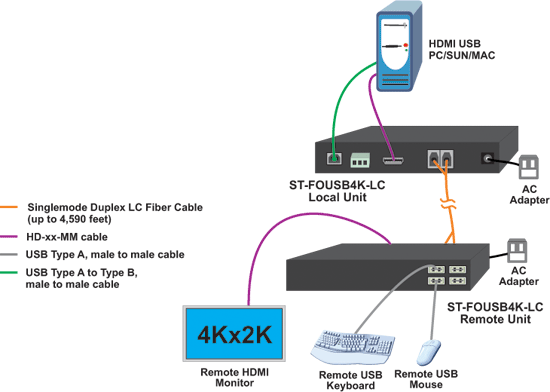

The XTENDEX® 4K HDMI USB KVM Extender via Fiber provides remote KVM
(USB keyboard, USB mouse and 4Kx2K UHD HDMI monitor) access to a USB
computer up to 4,590 feet (1400 meters) away via a duplex LC fiber
optic cable. Each KVM extender consists of a local unit that connects
to a computer, and a remote unit that connects to a keyboard, monitor
and mouse.
-
Signal transmission via two-strand singlemode or multimode LC fiber
optic cable.
- Using singlemode cable, extend to
4,590 feet (1400 meters).
- Using multimode cable, extend to
984 feet (300 meters).
- Supports Ultra-HD 4Kx2K
resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080, HDTV
resolutions to 1080p, and computer resolutions to 1920x1200.
- Obsługa funkcji HDMI:
- x.v.Color, sYCC601 color, Adobe
RGB Color and Adobe YCC601 color
- Dolby TrueHD, LPCM7.1 , DTS-HD
Master Audio, Dolby Digital i DTS
- Pasmo przenoszenia do 340 MHz
(10,2 Gb/s)
- Obsługa kompatybilnych urządzeń z
magistralą danych CEC (consumer electronic control).
- Zgodność ze standardem HDCP.
- Obsługa protokołu DDC2B.
- Porty USB do dołączenia
klawiatury, myszy i ekranu dotykowego.
- Dołączenie klawiatury i myszy bez
konieczności odłączania zasilania.
- Aktywna emulacja klawiatury i
myszy.
- Compliant with USB 2.0
(low/full/high speed) standards.
- Support full-duplex RS232 up to
115200 baud.
- Low RFI/EMI for sensitive
applications.
- Extender posiada zintegrowane
uchwyty do łatwego montażu na powierzchni płaskiej lub ścianie.
|
 |
SPECYFIKACJA
TECHNICZNA
Moduł
lokalny
-
Compatible with a USB computer (PC, SUN and MAC) with Ultra-HD HDMI
output.
- Multiplatform support: Windows
2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris,
Linux, FreeBSD, and MAC OS 9/10.
- One female HDMI
connector.
- One female USB Type B
connector.
- Four female USB Type A connectors
for connecting USB keyboard and mouse.
- Screw terminal for RS232.
Moduł
wyniesiony
-
One female HDMI connector for display.
- Four female USB Type A connectors
for connecting USB keyboard, mouse or touch screen.
- One female USB Type B connector
for firmware upgrades.
- Screw terminal for
RS232.
- Support full-duplex RS232 up to
115200 baud.
- Supported video
resolutions:
- Ultra-HD 4Kx2K resolutions
(3840x2160 @ 30Hz)
- 2K Cinema (2048x1080 @
60Hz)
- HDTV resolutions to
1080p
- Computer resolutions to
1920x1200
- Supports embedded digital audio
through HDMI compatible TVs or audio receivers.
Zasilanie
- Local and remote unit:
- Input: 230 VAC at 50 or
60
Hz via AC adapter.
- Output: 12VDC, 2A
Wymiary
Wymagania
środowiskowe
- Temperatura
pracy: 0°C do 70°C
- Temperatura
przechowywania: -40°C do 100°C
- Wilgotność
względna pracy i przechowywania: 0 do 80% bez efektu kondensacji
Certyfikaty
- CE, FCC, RoHS
- Zgodność z TAA
Maksymalny
zasięg
-
4,590 feet (1400 meters) over 9µm singlemode duplex LC fiber optic
cable.
- 984 feet (300 meters) over 50µm
multimode LC duplex fiber optic cable.
- The use of fiber couplers with
ST-FOUSB4K-LC is not recommended since it operates using high bandwidth
(10G SFP+) – straight fiber runs should be used.
Kable
-
Use a FIBER-D-LCLC-50-xxM duplex multimode LC 50-micron fiber optic
cable to extend the receiver from the transmitter up to 984 feet (300
meters).
- Use a duplex singlemode LC
9-micron fiber optic cable to extend the receiver from the transmitter
up to 4,590 feet (1400 meters).
- Includes 4.25 ft (1.3 m) male to
male HDMI cable to connect an HDMI source or display.
- Includes 6 ft (1.8 m) male USB
Type A to male USB Type B cable to connect source.
Gwarancja
|
 |
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
|
4K HDMI USB KVM
Extender via Fiber
|
ST-FOUSB4K-LC
|
