EXTENDER 8 PORTÓW HDMI I IR W
OBUDOWIE RACK 19" Z ZASIĘGIEM 70m NA KABLU CATx
|
 |
FUNKCJONALNOŚĆ

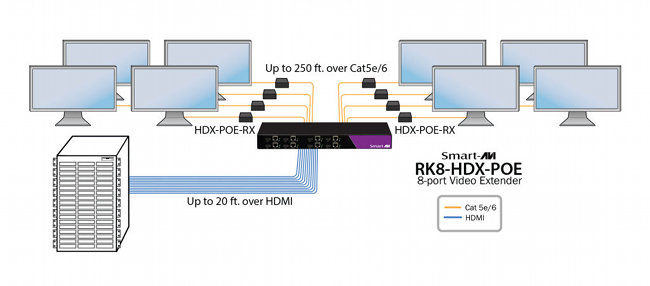

The RK8-HDX-POE is the perfect solution for extending HDMI signals to a
remote location up to 250 feet (70 m) away. It is the ideal way to
consolidate
up to eight workstation computers into one location. It is fully
compatible with MAC, PC and LINUX HDMI standards. Up to eight displays
can be extended easily from a rack without the mess or expense of
multiple extenders. Rather than buy multiple extenders for rack
components, and having to find power strips or numerous power outlets
for the adapters, the SmartAVI rack series of extenders allows for up
to eight inputs and eight outputs with only one power supply.
-
Supports resolutions up to 4K Ultra HD (@30Hz)
- Extends HDMI, IR, and Power
Output over Cat5e/6
- Extends IR Control Signals for
Remote Control
- Uses HDBaseT Technology
- Full HD support: 1080p@60Hz@48
bit/pixels,
1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
- Data Signals up to
3.4Gbps
- HDMI 1.4 and HDCP
Compliance
- Power receiver from
transmitter
- Transmits Dolby TrueHD, DTS-HD MA
Audio Signals
- Transmits 1080p Resolution Video
up to 250 ft (70 m)

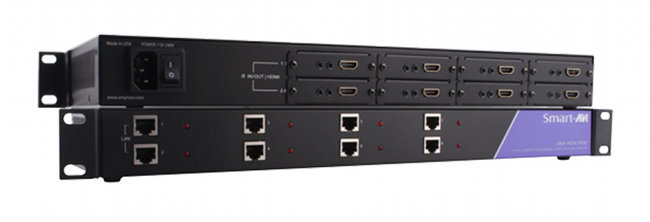

- Rack mountable
- Up to 8 units on single rack
|
 |
|
VIDEO
|
|
Resolution
|
800X600, 1024X768,
1280X1024, 1366X768, 1920X1200,
480i, 720p, 1080i, 1080p, 4K x
2K@30Hz@24bit
|
|
Transmission distance:
|
70 meters
|
|
Color Depth
|
Deep Color 36/30/24
Bit at 1080p and 3D
|
|
Audio Format
|
Up to PCM 8 channel,
Dolby Digital TrueHD,
and DTS-HD Master Audio
|
|
IR Range
|
38kHz, 56kHz
|
|
Video Bandwidth
|
10.2Gbps
|
|
Input Video Signal
|
1.2 Volts P-P
|
|
Input DDC Signal
|
5 Volts (TTL)
|
|
I/O
CONNECTOR (Transmitter)
|
|
Input
|
8 x (HDMI-A) 19PIN
Socket
8 x 3.5mm Jack for IR Receiver
|
|
Output
|
8 x RJ45 Jack
|
|
I/O
CONNECTOR (Receiver)
|
|
Input
|
1 x RJ45 Jack
1 x 3.5mm Jack for IR Receiver
|
|
Output
|
1 x 3.5mm Jack for IR
Emitter
1 x HDMI-A 19 PIN Socket
|
|
MECHANICAL
- Transmitter
|
|
Dimensions (H-W-D)
|
17”x 6” x 1.7
|
|
Weight
|
3.26 lbs (1,5 kg)
|
|
Power
|
230V
|
|
ENVIRONMENTAL
|
|
Operating Temperature
|
+0 to +40° C (+32° to
104° F)
|
|
Operating Humidity
|
10% to 85%
(Non-condensing)
|
|
Storage Temperature
|
-20° to +60°C (-4° to
+140° F)
|
|
SAFETY
|
|
Certificate
|
FCC, CE, RoHS
|
|
Power Adapter
|
UL, CE, FCC, RoHS
|
|
 |
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
|
8-Port HDBaseT HDMI
and IR Rack Mountable Extender Transmitters over a Single Cat5e/6 Cable.
Includes: [RK8- HDX-POE and CCPWR06]
|
RK8-HDX-POE-S
|
PDF
manual
|
Karta
katalogowa
|
|
HDMI and IR Receiver
over a Single CAT5e/6 Cable.
Includes: [HDX-POE-RX and PS12VD2A-WLLMNT]
|
HDX-POE-RX-S
|
|
|
|
|
|
